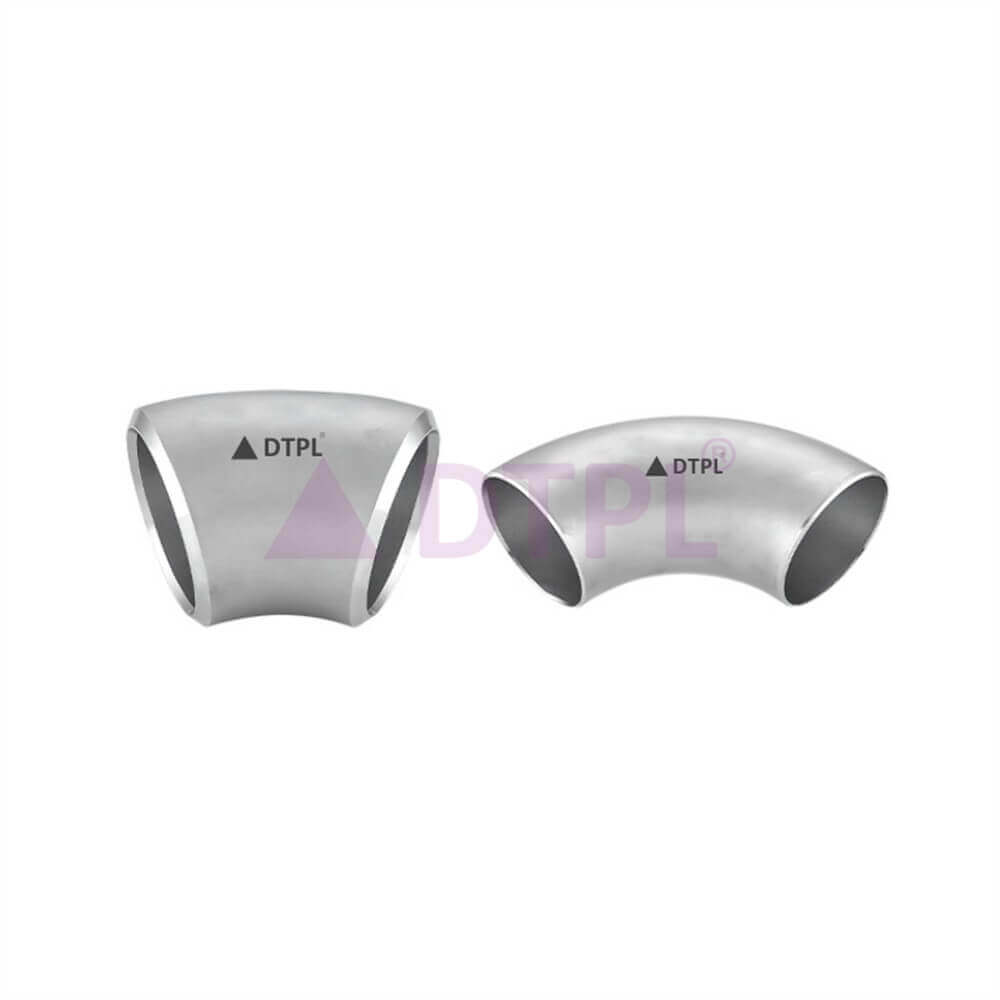

Product Specification & Features

  • Type: Seamless / Welded
  • Size: 1/2” NB to 12” NB
  • Thickness: Sch 10S / Sch 40S
  • Material: SS 304 / SS 316

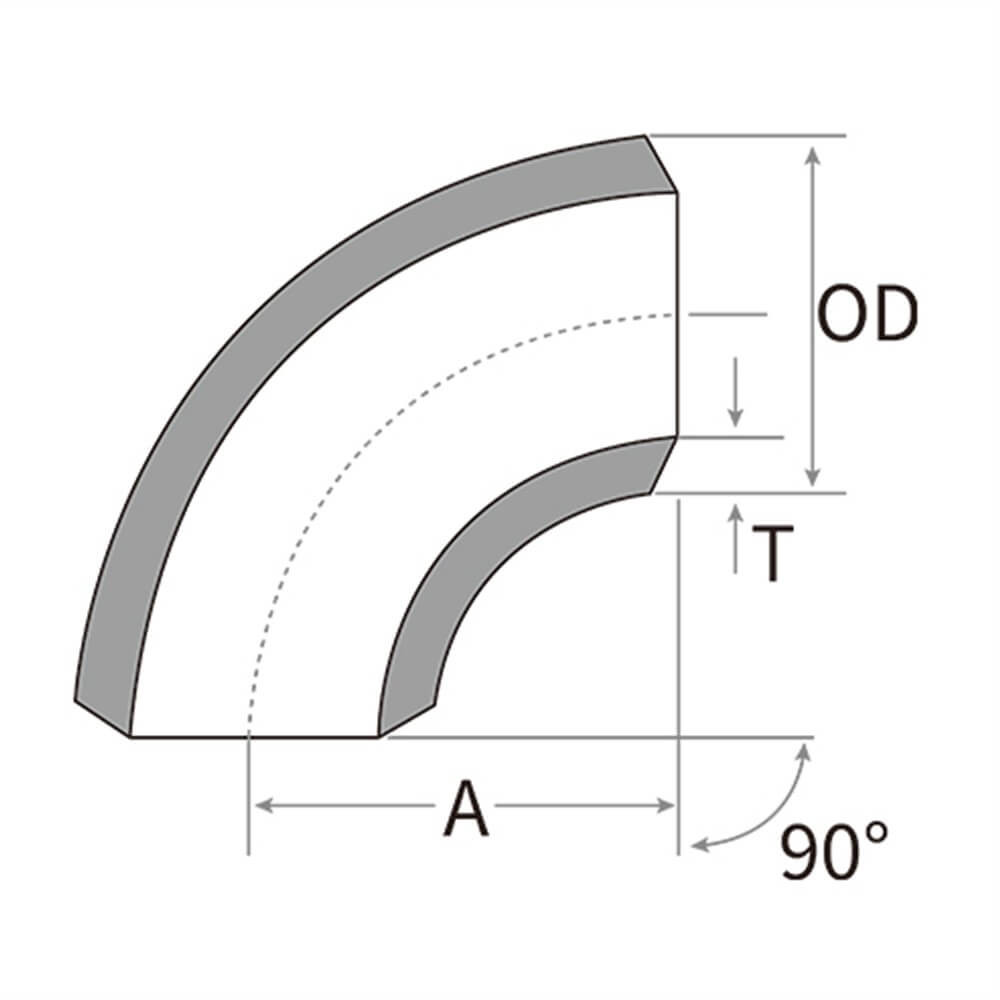

Specifications

ELBOWS 90° LONG RADIUS ELBOWS 45° LONG RADIUS ELBOWS 90° SHORT RADIUS
Nominal Pipe Size (in.) Thickness (Sch) D (mm) T (mm) A (mm) D (mm) T (mm) A (mm) D (mm) T (mm) A (mm)
1/2 10s 21.3 2.11 38.1 21.3 2.11 15.9 - - -
40s 21.3 2.77 38.1 21.3 2.77 15.9 - - -
3/4 10s 26.7 2.11 38.1 26.7 2.11 19 - - -
40s 26.7 2.87 38.1 26.7 2.87 19 - - -
1 10s 33.4 2.77 38.1 33.4 2.77 22.2 33.4 2.77 25.4
40s 33.4 3.38 38.1 33.4 3.38 22.2 33.4 3.38 25.4
1 1/4 10s 42.2 2.77 47.6 42.4 2.77 25.4 42.4 2.77 31.8
40s 42.2 3.56 47.6 42.4 3.56 25.4 42.4 3.56 31.8
1 1/2 10s 48.3 2.77 57.2 48.3 2.77 28.6 48.3 2.77 38.1
40s 48.3 3.68 57.2 48.3 3.68 28.6 48.3 3.68 38.1
2 10s 60.3 2.77 76.2 60.3 2.77 34.9 60.3 2.77 50.8
40s 60.3 3.91 76.2 60.3 3.91 34.9 60.3 3.91 50.8
2 1/2 10s 73 3.05 95.5 73 3.05 44.5 73 3.05 63.5
40s 73 5.16 95.5 73 5.16 44.5 73 5.16 63.5
3 10s 88.9 3.05 113 88.9 3.05 50.8 88.9 3.05 76.2
40s 88.9 5.49 113 88.9 5.49 50.8 88.9 5.49 76.2
3 1/2 10s 101.6 3.05 132.4 101.6 3.05 63.5 114.3 3.05 101.6
40s 101.6 5.74 132.4 101.6 6.02 63.5 114.3 6.02 101.6
4 10s 114.3 3.05 152.4 114.3 3.05 63.5 141.3 3.4 127
40s 114.3 6.02 152.4 114.3 6.02 63.5 141.3 6.55 127
5 10s 141.3 3.4 190.5 141.3 3.4 76.4 168.3 3.4 152.4
40s 141.3 6.55 190.5 141.3 6.55 76.4 168.3 7.11 152.4
6 10s 168.3 3.4 228.6 168.3 3.4 95.3 219.1 3.76 203.2
40s 168.3 7.11 228.6 168.3 7.11 95.3 219.1 8.18 203.2
8 10s 219.1 3.76 304.8 219.1 3.76 127 273.1 4.19 254
40s 219.1 8.18 304.8 219.1 8.18 127 273.1 9.27 254
10 10s 273.1 4.19 361 273.1 4.19 159 323.9 4.57 304.8
40s 273.1 9.27 361 273.1 9.27 159 323.9 9.53 304.8
12 10s 323.9 4.57 457.2 323.9 4.57 190.5
40s 323.9 9.53 457.2 323.9 9.53 190.5
