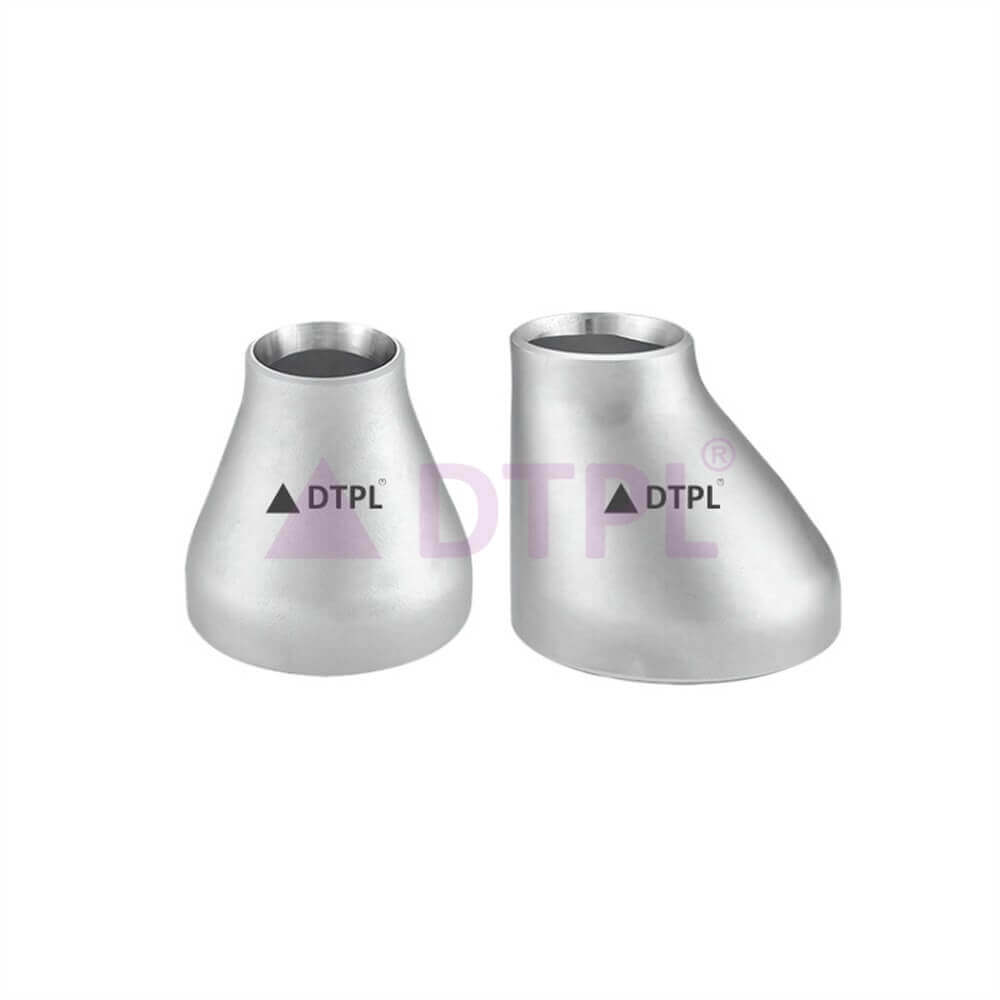

Product Specification & Features

Type: Seamless / Welded
Size: 1/2” NB to 12” NB
Thickness: Sch 10S / Sch 40S
Material: SS 304 / SS 316

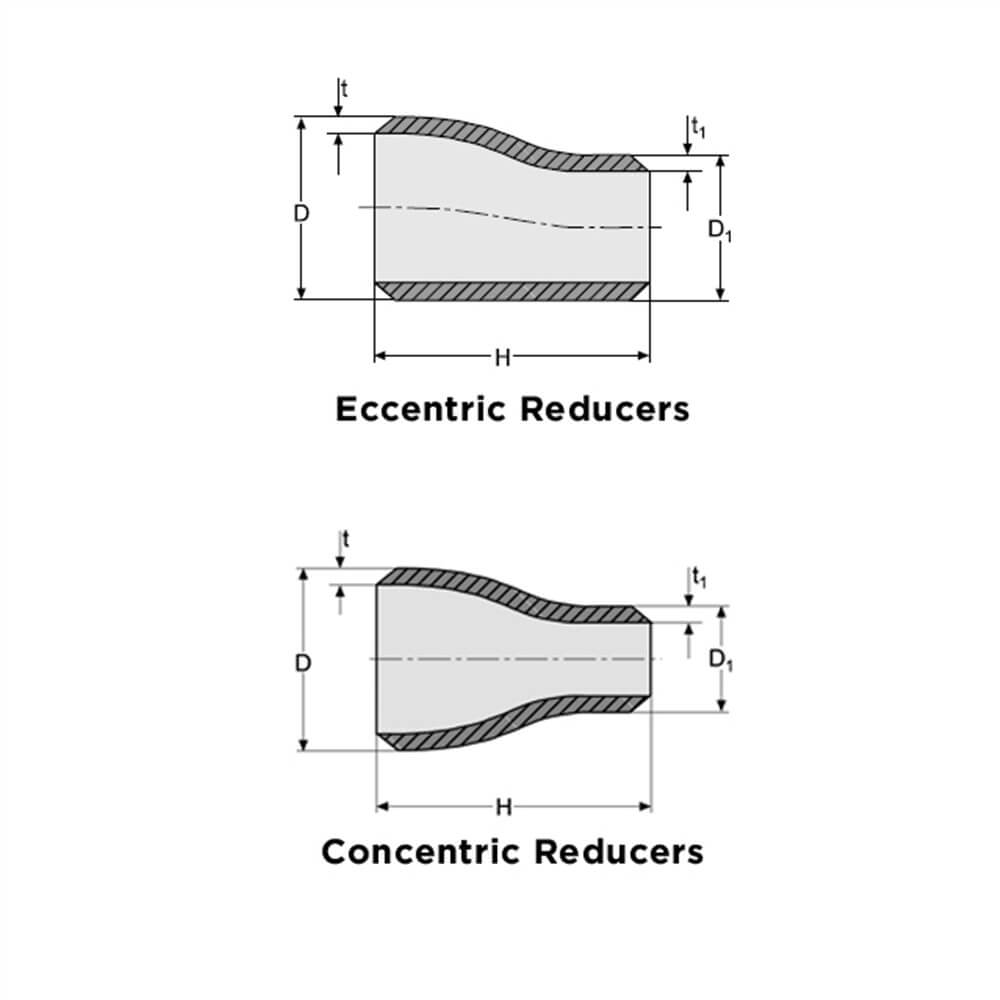

Eccentric Reducers Specification

Nominal Pipe Size	Sch.*	Dimensions in mm
in.	Sch.*	D	D1	t	t1	H
3/4 x 1/2	10s	26.7	21.3	2.11	2.11	39.3
3/4 x 1/2	40s	26.7	21.3	2.87	2.77	39.3
1 x 1/2	10s	33.4	21.3	2.77	2.11	50.8
1 x 1/2	40s	33.4	21.3	3.38	2.77	50.8
1 x 3/4	10s	33.4	26.7	2.77	2.11	50.8
1 x 3/4	40s	33.4	26.7	3.38	2.87	50.8
1¼ x 3/4	10s	42.2	26.7	2.77	2.11	50.8
1¼ x 1	10s	42.2	33.4	2.77	2.77	50.8
1¼ x 1	40s	42.2	33.4	3.56	3.38	50.8
1½ x 1/2	40s	48.3	21.3	3.68	2.77	63.5
1½ x 3/4	10s	48.3	26.7	2.77	2.11	63.5
1½ x 3/4	40s	48.3	26.7	3.68	2.87	63.5
1½ x 1	10s	48.3	33.4	2.77	2.77	63.5
1½ x 1	40s	48.3	33.4	3.68	3.68	63.5
1½ x 1¼	10s	48.3	42.2	2.77	2.77	63.5
1½ x 1¼	40s	48.3	42.2	3.68	3.56	63.5
2 x 1	10s	60.3	33.4	2.77	2.77	76.2
2 x 1	40s	60.3	33.4	3.91	3.38	76.2
2 x 1¼	10s	60.3	42.2	2.77	2.77	76.2
2 x 1½	10s	60.3	48.3	2.77	2.77	76.2
2 x 1½	40s	60.3	48.3	3.91	3.68	76.2
3 x 1	40s	88.9	33.4	5.49	3.38	88.9
3 x 1½	10s	88.9	48.3	3.05	2.77	88.9
3 x 1½	40s	88.9	48.3	5.49	3.68	88.9
3 x 2	10s	88.9	60.3	3.05	2.77	88.9
3 x 2	40s	88.9	60.3	5.49	3.91	88.9
3 x 2½	10s	88.9	73.0	3.05	2.77	88.9
3 x 2½	40s	88.9	73.0	5.49	5.16	88.9
4 x 1½	10s	114.3	48.3	3.05	2.77	101.6
4 x 2	10s	114.3	60.3	3.05	2.77	101.6
4 x 2	40s	114.3	60.3	6.02	3.91	101.6
4 x 2½	10s	114.3	73.0	3.05	3.05	101.6
4 x 2½	40s	114.3	73.0	6.02	5.16	101.6
4 x 3	10s	114.3	88.9	3.05	3.05	101.6
4 x 3	40s	114.3	88.9	6.02	5.49	101.6
5 x 3	10s	141.3	88.9	3.40	3.05	127.0
5 x 3	40s	141.3	88.9	6.55	5.49	127.0
5 x 4	10s	141.3	114.3	3.40	3.05	127.0
5 x 4	40s	141.3	114.3	6.55	6.02	127.0
6 x 3	10s	168.3	88.9	3.40	3.05	139.7
6 x 3	40s	168.3	88.9	7.11	5.49	139.7
6 x 4	10s	168.3	114.3	3.40	3.05	139.7
6 x 4	40s	168.3	114.3	7.11	6.02	139.7
6 x 5	10s	168.3	141.3	3.40	3.40	139.7
6 x 5	40s	168.3	141.3	7.11	6.55	139.7
8 x 4	10s	219.1	114.4	3.76	3.05	152.4
8 x 4	40s	219.1	114.4	8.18	6.02	152.4
8 x 5	10s	219.1	141.3	3.76	3.05	152.4
8 x 5	40s	219.1	141.3	8.18	6.02	152.4
8 x 6	10s	219.1	168.3	3.76	3.40	152.4
8 x 6	40s	219.1	168.3	8.18	7.11	152.4
10 x 6	10s	273.1	168.3	4.19	3.40	177.8
10 x 6	40s	273.1	168.3	9.27	7.11	177.8
10 x 8	10s	273.1	219.1	4.19	3.76	177.8
10 x 8	40s	273.1	219.1	9.27	8.18	177.8
12 x 6	10s	323.9	168.3	4.57	3.40	203.2
12 x 6	40s	323.9	168.3	9.53	7.11	203.2
12 x 8	10s	323.9	219.1	4.57	3.76	203.2
12 x 8	40s	323.9	219.1	9.53	8.18	203.2
12 x 10	10s	323.9	273.1	4.57	4.19	203.2
12 x 10	40s	323.9	273.1	9.53	9.27	203.2

Concentric Reducers Specification

Nominal Pipe Size	Sch.*	Dimensions in mm		Weight
in.	Sch.*	D	D1	t	t1	H
3/4 x 1/2	10s	26.7	21.3	2.11	2.11	39.3
3/4 x 1/2	40s	26.7	21.3	2.87	2.77	39.3
1 x 1/2	10s	33.4	21.3	2.77	2.11	50.8
1 x 1/2	40s	33.4	21.3	3.38	2.77	50.8
1 x 3/4	10s	33.4	26.7	2.77	2.11	50.8
1 x 3/4	40s	33.4	26.7	3.38	2.87	50.8
1¼ x 1/2	10s	42.2	21.3	2.77	2.11	50.8
1¼ x 1/2	40s	42.2	21.3	3.56	2.77	50.8
1¼ x 3/4	10s	42.2	26.7	2.77	2.11	50.8
1¼ x 3/4	40s	42.2	26.7	3.56	2.87	50.8
1¼ x 1	10s	42.2	33.4	2.77	2.77	50.8
1¼ x 1	40s	42.2	33.4	3.56	3.38	50.8
1½ x 1/2	10s	48.3	21.3	2.77	2.11	63.5
1½ x 1/2	40s	48.3	21.3	3.68	2.77	63.5
1½ x 3/4	10s	48.3	26.7	2.77	2.11	63.5
1½ x 3/4	40s	48.3	26.7	3.68	2.87	63.5
1½ x 1	10s	48.3	33.4	2.77	2.77	63.5
1½ x 1	40s	48.3	33.4	3.68	3.38	63.5
1½ x 1¼	10s	48.3	42.2	2.77	2.77	63.5
1½ x 1¼	40s	48.3	42.2	3.68	3.56	63.5
2 x 3/4	10s	60.3	26.7	2.77	2.11	76.2
2 x 3/4	40s	60.3	26.7	3.91	2.87	76.2
2 x 1	10s	60.3	33.4	2.77	2.77	76.2
2 x 1	40s	60.3	33.4	3.91	3.38	76.2
2 x 1¼	10s	60.3	42.2	2.77	2.77	76.2
2 x 1¼	40s	60.3	42.2	3.91	3.56	76.2
2 x 1½	10s	60.3	48.3	2.77	2.77	76.2
2 x 1½	40s	60.3	48.3	3.91	3.68	76.2
2½ x 1	10s	73.0	33.4	3.05	2.77	88.9
2½ x 1½	10s	73.0	48.3	3.05	2.77	88.9
2½ x 1½	40s	73.0	48.3	5.16	3.68	88.9
2½ x 2	10s	73.0	60.3	3.05	2.77	88.9
2½ x 2	40s	73.0	60.3	5.16	3.91	88.9
3 x 1	10s	88.9	33.4	3.05	2.77	88.9
3 x 1	40s	88.9	33.4	5.49	3.38	88.9
3 x 1¼	40s	88.9	42.2	5.49	3.56	88.9
3 x 1½	10s	88.9	48.3	3.05	2.77	88.9
3 x 1½	40s	88.9	48.3	5.49	3.68	88.9
3 x 2	10s	88:9	60.3	3.05	2.77	88.9
3 x 2	40s	88.9	60.3	5.49	3.91	88.9
3 x 2½	10s	88.9	73.0	3.05	3.05	88.9
3 x 2½	40s	88.9	73.0	5.49	5.16	88.9
4 x 1½	10s	114.3	48.3	3.05	2.77	101.6
4 x 1½	40s	114.3	48.3	6.02	3.68	101.6
4 x 2	10s	114.3	60.3	3.05	2.77	101.6
4 x 2	40s	114.3	60.3	6.02	3.91	101.6
4 x 2½	10s	114.3	73.0	3.05	3.05	101.6
4 x 2½	40s	114.3	73.0	6.02	5.16	101.6
4 x 3	10s	114.3	88.9	3.05	3.05	101.6
4 x 3	40s	114.3	88.9	6.02	5.49	101.6
5 x 2½	10s	141.3	73.0	3.40	3.05	127.0
5 x 3	10s	141.3	88.9	3.40	3.05	127.0
5 x 3	40s	141.3	88.9	6.55	5.49	127.0
5 x 4	10s	141.3	114.3	3.40	3.05	127.0
5 x 4	40s	141.3	114.3	6.55	6.55	127.0
6 x 3	10s	168.3	88.9	3.40	3.05	139.7
6 x 3	40s	168.3	88.9	7.11	5.49	139.7
6 x 4	10s	168.3	114.3	3.40	3.05	139.7
6 x 4	40s	168.3	114.3	7.11	6.02	139.7
6 x 5	10s	168.3	141.4	3.40	3.40	139.7
6 x 5	40s	168.3	141.4	7.11	6.55	139.7
8 x 4	10s	219.1	114.3	3.76	3.05	152.4
8 x 4	40s	219.1	114.3	8.18	6.02	152.4
8 x 5	10s	219.1	141.3	3.76	3.40	152.4
8 x 5	40s	219.1	141.3	8.18	6.55	152.4
8 x 6	10s	219.1	168.3	3.76	3.40	152.4
8 x 6	40s	219.1	168.3	8.18	7.11	152.4
10 x 6	10s	273.1	168.3	4.19	3.40	177.8
10 x 6	40s	273.1	168.3	9.27	7.11	177.8
10 x 8	10s	273.1	219.1	4.19	3.76	177.8
10 x 8	40s	273.1	219.1	9.27	8.18	177.8
12 x 6	10s	323.9	168.3	4.57	3.40	203.2
12 x 6	40s	323.9	168.3	9.53	7.11	203.2
12 x 8	10s	323.9	219.1	4.57	3.76	203.2
12 x 8	40s	323.9	219.1	9.53	8.18	203.2
12 x 10	10s	323.9	273.1	4.57	4.19	203.2
12 x 10	40s	323.9	273.1	9.53	9.27	203.2
