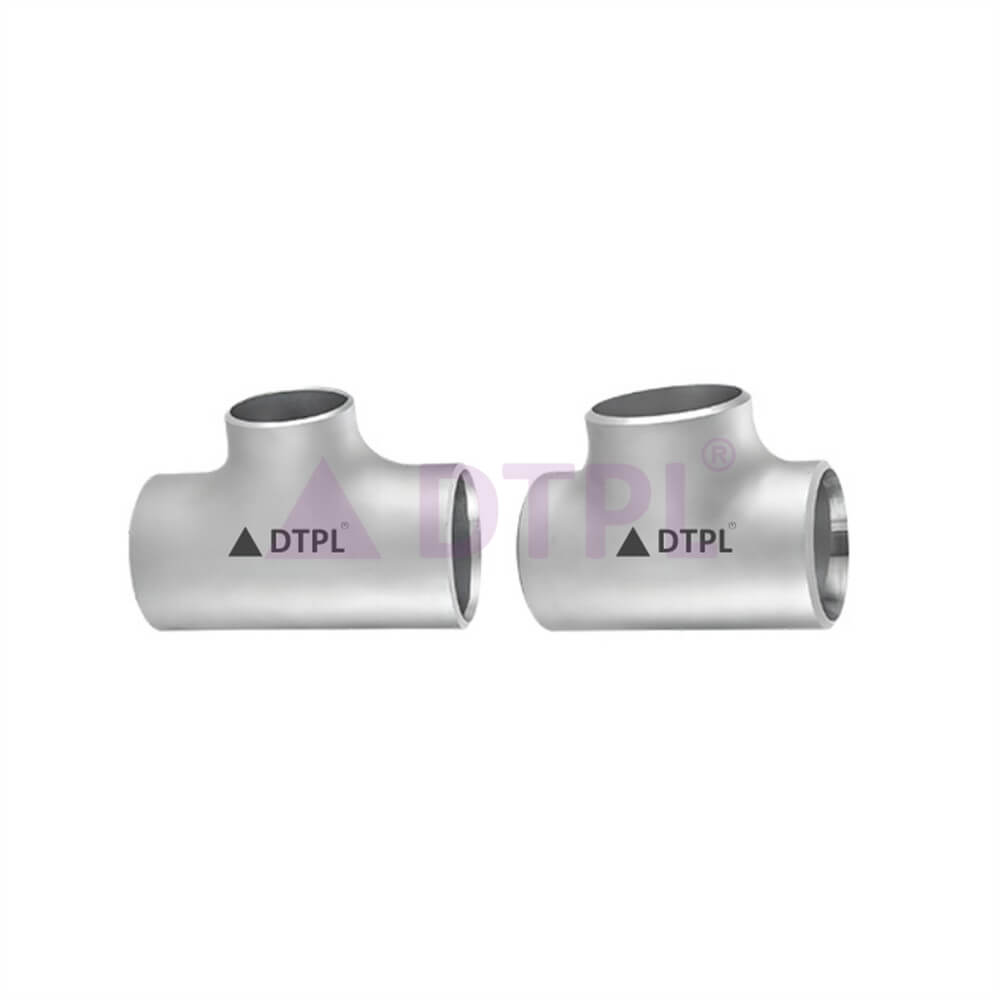

Product Specification & Features

Type: Seamless / Welded
Size: 1/2” NB to 12” NB
Thickness: Sch 10S / Sch 40S
Material: SS 304 / SS 316

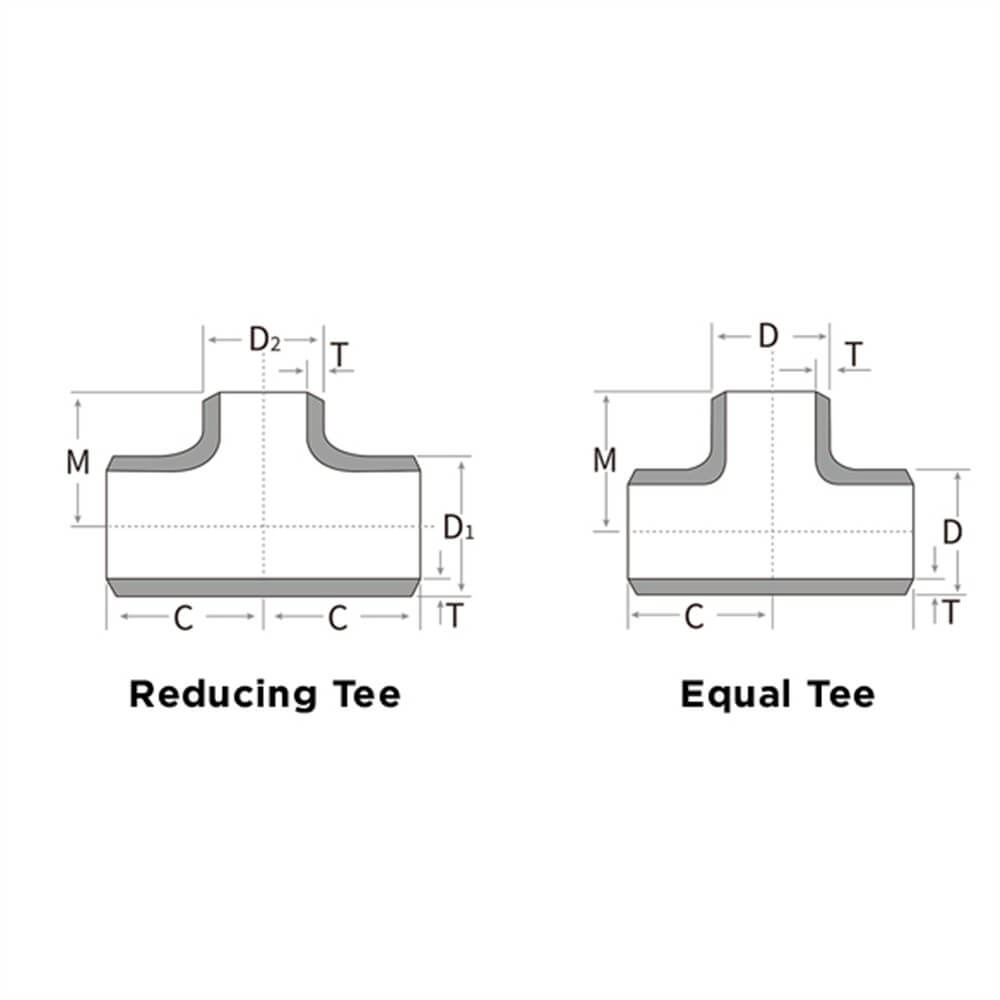

Equal Tee Specification

Nominal Pipe Size (in.)	Thickness (Sch)	D (mm)	T (mm)	C/M (mm)
1/2	10s	21.3	2.11	25.4
1/2	40s	21.3	2.77	25.4
3/4	10s	26.7	2.11	28.6
3/4	40s	26.7	2.87	28.6
1	10s	33.4	2.77	38.1
1	40s	33.4	3.38	38.1
1 1/4	10s	42.2	2.77	47.6
1 1/4	40s	42.2	3.56	47.6
1 1/2	10s	48.3	2.77	57.2
1 1/2	40s	48.3	3.68	57.2
2	10s	60.3	2.77	63.5
2	40s	60.3	3.91	63.5
2 1/2	10s	73	3.05	76.2
2 1/2	40s	73	5.16	76.2
3	10s	88.9	3.05	85.7
3	40s	88.9	5.49	85.7
3 1/2	10s	101.6	3.05	95.3
3 1/2	40s	101.6	5.74	95.3
4	10s	114.3	3.05	104.8
4	40s	114.3	6.02	104.8
5	10s	141.3	3.4	123.8
5	40s	141.3	6.55	123.8
6	10s	168.3	3.4	142.9
6	40s	168.3	7.11	142.9
8	10s	219.1	3.76	177.8
8	40s	219.1	8.18	177.8
10	10s	273.1	4.19	215.9
10	40s	273.1	9.27	215.9
12	10s	323.9	4.57	254
12	40s	323.9	9.53	254

Reducing Tee Specification

Nominal Pipe Size		Thickness (Sch)	Dimensions in mm
Run	Outlet	Thickness (Sch)	D	D1	T	T1	C	M
3/4	1/2	10s	26.7	21.3	2.11	2.11	29	29
3/4	1/2	40s	26.7	21.3	2.87	2.77	29	29
1	½	10s	33.4	21.3	2.77	2.11	38	38
1	½	40s	33.4	21.3	3.38	2.77	38	38
1	¾	10s	33.4	26.7	2.77	2.11	38	38
1	¾	40s	33.4	26.7	3.38	2.87	38	38
1¼	½	40s	42.2	21.3	3.56	2.77	47.6	47.6
1¼	3/4	10s	42.2	26.7	2.77	2.11	47.6	47.6
1¼	3/4	40s	42.2	26.7	3.56	2.87	47.6	47.6
1¼	1	10s	42.2	33.4	2.77	2.77	47.6	47.6
1¼	1	40s	42.2	33.4	3.56	3.38	47.6	47.6
1½	1/2	10s	48.3	21.3	2.77	2.11	57	57
1½	1/2	40s	48.3	21.3	3.68	2.77	57	57
1½	3/4	10s	48.3	26.7	2.77	2.11	57	57
1½	3/4	40s	48.3	26.7	3.68	2.87	57	57
1½	1	10s	48.3	33.4	2.77	2.77	57	57
1½	1	40s	48.3	33.4	3.68	3.38	57	57
2	3/4	10s	60.3	26.7	2.77	2.11	64	44
2	3/4	40s	60.3	26.7	3.91	2.87	64	44
2	1	10s	60.3	33.4	2.77	2.77	64	51
2	1	40s	60.3	33.4	3.91	3.38	64	51
2	1¼	10s	60.3	42.2	2.77	2.77	64	57
2	1¼	40s	60.3	42.2	3.91	3.56	64	57
2	1½	10s	60.3	48.3	2.77	2.77	64	60
2	1½	40s	60.3	48.3	3.91	3.68	64	60
2½	1¼	10s	73.0	42.2	3.05	2.77	76	67
2½	1½	10s	73.0	48.3	3.05	2.77	76	67
2½	1½	40s	73.0	48.3	5.16	3.68	76	67
2½	2	10s	73.0	60.3	3.05	2.77	76	70
2½	2	40s	73.0	60.3	5.16	3.91	76	70
3	1	10s	88.9	33.4	3.05	2.77	86	73
3	1	40s	88.9	33.4	5.49	3.38	86	73
3	1½	10s	88.9	48.3	3.05	2.77	86	73
3	1½	40s	88.9	48.3	5.49	3.68	86	73
3	2	10s	88.9	60.3	3.05	2.77	86	76
3	2	40s	88.9	60.3	5.49	3.91	86	76
3	2½	10s	88.9	73.0	3.05	3.05	86	83
3	2½	40s	88.9	73.0	5.49	5.16	86	83
4	1½	10s	114.3	48.3	3.05	2.77	105	86
4	1½	40s	114.3	48.3	6.02	3.68	105	86
4	2	10s	114.3	60.3	3.05	2.77	105	89
4	2	40s	114.3	60.3	6.02	3.91	105	89
4	2½	10s	114.3	73.0	3.05	3.05	105	95
4	2½	40s	114.3	73.0	6.02	5.16	105	95
4	3	10s	114.3	88.9	3.05	3.05	105	98
4	3	40s	114.3	88.9	6.02	5.49	105	98
5	3	10s	141.3	88.9	3.40	3.05	124	111
5	3	40s	141.3	88.9	6.55	5.49	124	111
5	4	10s	141.3	114.3	3.40	3.05	124	117
5	4	40s	141.3	114.3	6.55	6.02	124	117
6	2½	10s	168.3	73.0	3.40	3.05	143	124
6	3	10s	168.3	88.9	3.40	3.05	143	124
6	3	40s	168.3	88.9	7.11	5.49	143	124
6	4	10s	168.3	114.3	3.40	3.05	143	130
6	4	40s	168.3	114.3	7.11	6.02	143	130
6	5	10s	168.3	141.3	3.40	3.40	143	137
6	5	40s	168.3	141.3	7.11	6.55	143	137
8	4	10s	219.1	114.3	3.76	3.05	178	156
8	4	40s	219.1	114.3	8.18	6.02	178	156
8	5	10s	219.1	141.3	3.76	3.40	178	162
8	5	40s	219.1	141.3	8.18	6.55	178	162
8	6	10s	219.1	168.3	3.76	3.40	178	168
8	6	40s	219.1	168.3	8.18	7.11	178	168
10	4	10s	273.1	114.3	4.19	3.05	216	184
10	4	40s	273.1	114.3	9.27	6.02	216	184
10	6	10s	273.1	168.3	4.19	3.40	216	194
10	6	40s	273.1	168.3	9.27	7.11	216	194
10	8	10s	273.1	219.1	4.19	3.76	216	203
10	8	40s	273.1	219.1	9.27	8.18	216	203
12	6	10s	323.9	168.5	4.57	3.40	254	219
12	6	40s	323.9	168.5	9.53	7.11	254	219
12	8	10s	323.9	219.1	4.57	3.76	254	229
12	8	40s	323.9	219.1	9.53	8.18	254	229
12	10	10s	323.9	273.1	4.57	3.76	254	241
12	10	40s	323.9	273.1	9.53	9.27	254	241
